Case Study: Burgle House

Amenaza Technologies Limited

Introduction - Burgle House

This demonstration illustrates SecurITree's attack tree analysis by examining the various ways in which a typical residential home can be burglarized. Although it would be unusual to apply SecurITree to such a simple problem, the familiarity of the subject makes the example meaningful to everyone. It also shows that SecurITree can be used to analyze threats against any kind of asset.

If you desire, you can follow along with this demonstration by opening the Burgle House tree (Data\BurgleHouse.rit). This is especially useful for users who are not yet familiar with the advanced analysis functionality - the best way to learn is to follow along!

Define Attacker's Goal

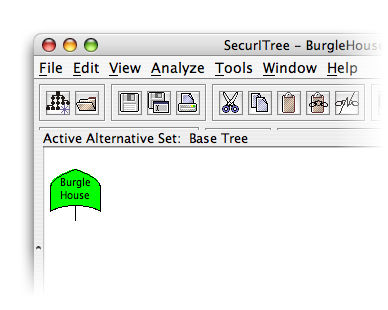

Burgle House root node

First, we define the attacker's main goal - to gain access into the house. In a more meaningful example, this may be to steal information from a computer system or to destroy a gas pipeline.

Decompose Main Goal

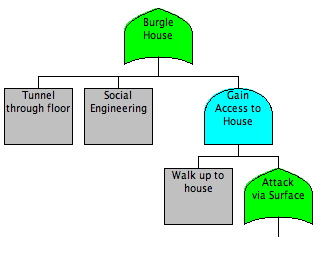

Secondary Goals

Next we decompose the attacker's main goal (Burgle House) into sub-goals. As was learned in previous demonstrations, a node's children represent the goals or actions which must be performed to accomplish the goal represented by the parent node.

Continue Refining Model

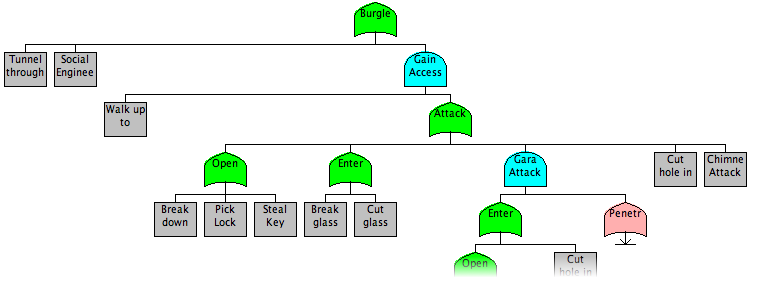

Full BurgleHouse Attack Tree

We continue to refine our model, decomposing each node into ever more specific sub-goals. Ultimately, the goals become descriptions of tasks the attacker needs to accomplish. A good rule of thumb is to continue breaking down attacks until it is clear to a non-expert how to perform the attack.

Start Analysis

Once the model is complete, we can begin to perform analysis. For this particular case, we will analyze the scenario of a Homeowner vs. a Juvenile Delinquent.

Starting advanced analysis

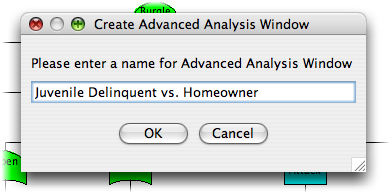

Start by clicking on the Analyze menu, then selecting Advanced Analysis. Enter the name of this analysis (in this case, "Juvenile Delinquent vs. Homeowner"). Hit OK to go to the utility function definition window.

Define Utility Functions

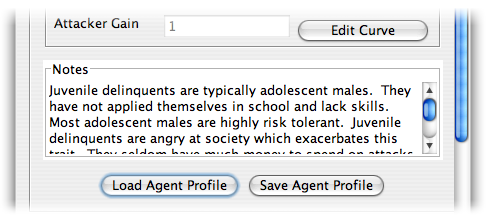

How to load the agent profile

This window allows you to define the resource affinity curves for the adversary which we are modeling. For this example, we will load the files included with the Burgle House demo. Within the Agent Profile box, click the Load Agent Profile button, then select the Juvenile Delinquent.agt file.

Next do the same for Victim Profile, selecting

Take some time to look at the mappings and read the notes to get an idea of why the curves were defined as they are. Once you are finished, click OK to proceed to the analysis window.

Find Riskiest Attacks

A good way to quickly check the risk of a particular adversary is to look at the Risk Metric column and find the attack with the highest value. This is the attack which has the highest risk for the defender: it is likely to happen and will hurt a lot when it does.

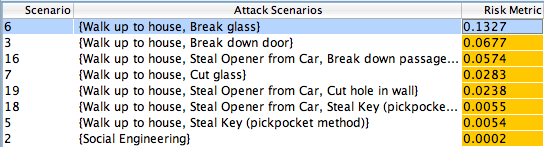

Risk Metric column, showing which attacks are the riskiest

As you can see, in this case the most 'risky' attack is when the Juvenile delinquent walks up to the house and breaks the glass on a window.

If you look at the other columns, you can see why this is the case: it costs virtually nothing, takes very little skill, and has the potential for the attacker to gain quite a bit of money (all of the successful attacks against this hypothetical residence result in the attacker gaining about the same amount of money; therefore, the Ease of Attack metric is more important in this case for determining risk).

Modeling Countermeasures

Now that we have determined the most risky attacks against this house, we can consider what countermeasures should be implemented and how that will impact the decisions of the adversary. In this case, the homeowner decides to see what outcome will result by putting a fence around his property. To model this, we can use Alternative Sets, a feature in SecurITree which lets us keep multiple versions of the same tree while being able to change minor aspects of each.

To make a new Alternative Set, click Edit -> Define Alternative Sets. You can enter a name for the new set (in our case, this will be Fenced Perimiter), and then hit create.

Pulldown for choosing the alt set

If you are following along with this demo using a copy of Burgle House, then you can switch alternative sets by clicking on the pulldown menu in the toolbar and selecting Fenced Perimeter.

Modeling Countermeasures (2)

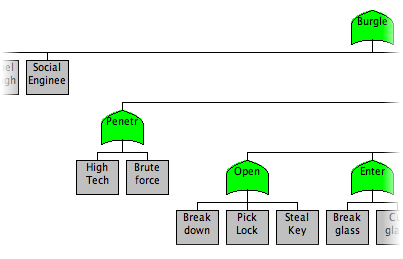

Screenshot showing the new nodes in the Fenced Perimeter alt set.

You can now see the difference between the Base Tree and the Fenced Perimeter: the leaf node "Walk up to House" in the Base Tree has been replaced by an OR node with two children, representing high tech and low tech attacks on the fence.

With no other changes to the tree, we will now repeat the advanced analysis, using the same profiles for both victim (the homeowner) and the attacker (the juvenile delinquent).

Viewing Risk after Countermeasures

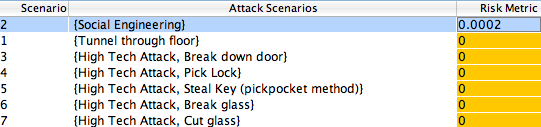

Screenshot showing countermeasure

You can see that the lack of ability of the juvenile delinquent to penetrate the fenced perimeter has reduced the risk greatly - in fact, the only attack which is reasonable is a social engineering attack! In this case, the addition of a fence seems to be a very effective solution to reduce the risk of attack by a certain class of thieves.

But we are not finished yet - how would our defenses hold up against a more skilled attacker, like perhaps a cat burglar? This is your chance to apply the skills which you have learned in these tutorials to another real world problem.

Cat Burglar

Before you do any analysis, it can be helpful to first think about the situation and ask yourself some questions.

This is your chance to use SecurITree to try and find answers to these questions. If you are looking for more material, you can try loading the Mansion Owner tree (a homeowner with much more to lose, but also some better defenses like an alarm system), and try performing similar 'what if' experiments with it.

Finished Demonstration

This demonstration is now complete. If you want to review the information again, you can hit the Refresh button; if you want to print this demonstration, you can do so using your browser's Print button. Otherwise, please return to the main demo page.
